Ideal Vacuum Cube 12 x 12 Vacuum Chamber Plate with One ISO-F 63 and Four KF-25 (NW-25) Ports
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 15%

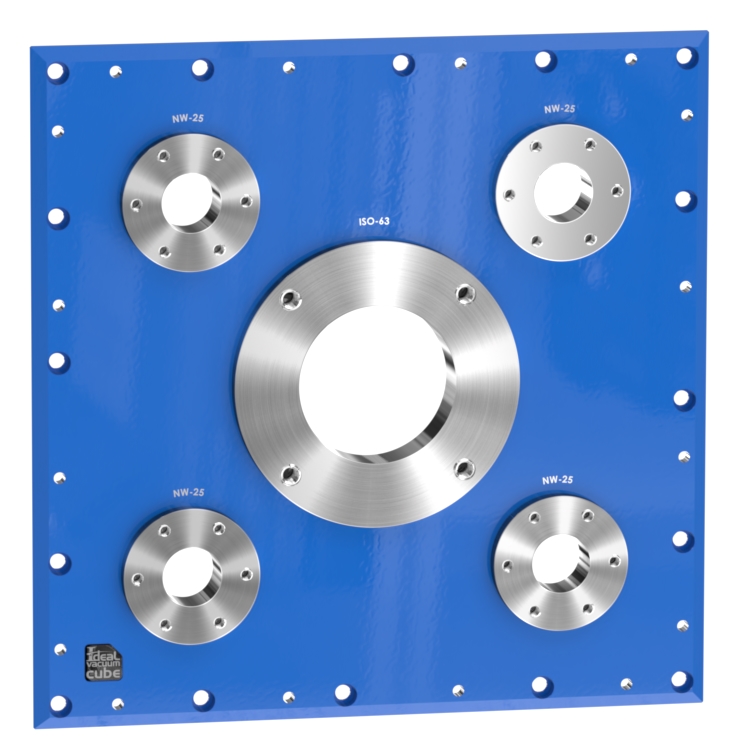

This is an Ideal Vacuum Cube 12 x 12 inch plate with one centered ISO-F 63 port and four KF-25 bulkhead ports in the plate's corners. The plate is machined from 6061-T6 aluminum and powder coated blue.
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766).
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766).
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
- 12 x 12 plate
- 6061-T6 aluminum
- Blue powdercoat
- One ISO-F 63 and four KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings)

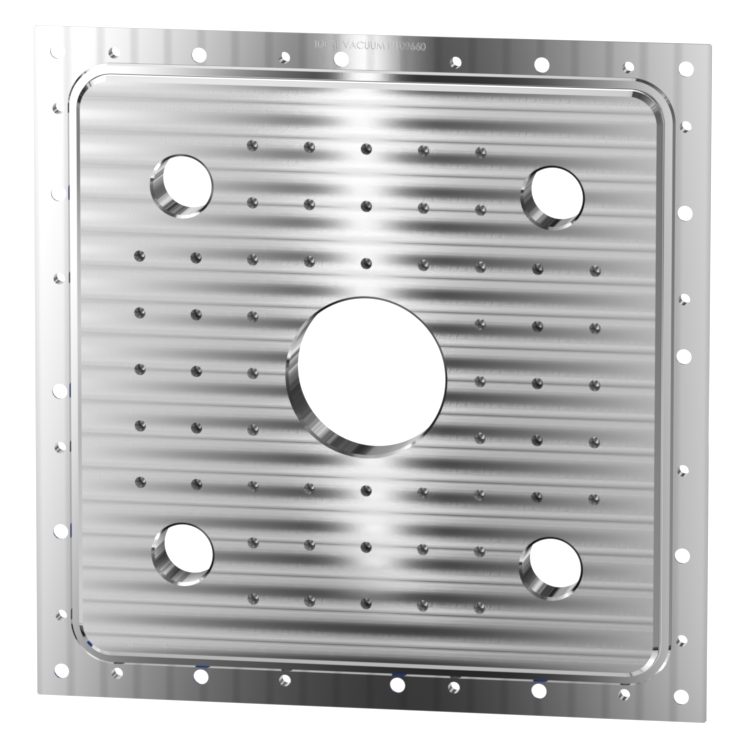

- Internal optical breadboard
- Mounts in any orientation
- 12 x 12 x 12
- 6x12x12 (on 12 x 12 side)
- 24 x 24 x 24
